AGM UNVG Gen-3 Binocular System

PLEASE INQUIRE FOR STOCK STATUS BEFORE PLACING YOUR ORDER

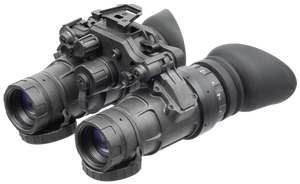

The AGM Global Vision Ultralight Night Vision Goggle (UNVG) is a full-featured articulating binocular system in a compact, lightweight, and rugged package.

The UNVG features a dual articulating design which allows users to operate the unit with either one or both eyes.  This is useful when operating a thermal optic or other passive aiming device while maintaining night vision on one side only.  This also allows the user to stow the pods comfortably against the helmet for a lower profile while in a vehicle or where head space may be limited.  Individual pods are powered off when articulated to eliminate backspash and protect the image intensifier tubes.

The UNVG is comprised of a simple, minimalist design, but without sacrificing features.  It features simple controls on the front of the housing for gain, on/off, and IR illumination.  Interpupillary adjustments allow the user to effortlessly set IP stop distances to their preference.  A durable, aluminum dovetail provides secure attachment to the user’s helmet mount.

Housing and Optics Information

The AGM UNVG is built using ultralight, yet high-strength reinforced PEEK+ glass fiber polymer construction to create one the lightest weight but highest performing binocular night vision devices (BNVD) currently on the market.  Power is supplied by a single AA battery, which allows up to 15 hours of continuous use.  Additionally, power can be supplied by an external battery pack which utilizes either four AA, or two CR123A batteries for extended operating times of up to sixty hours.

High-quality Mil-Spec objective lens and eyepiece optics are used standard and provide excellent image quality and light transmission.

Rochester Precision Optics (RPO) ultralight objective lenses and eyepieces are available as an upgraded option.  RPO optics are approximately 20% lighter weight than standard Mil-Spec optics without any sacrifice of image quality.

All units are professionally assembled, nitrogen-purged, and thoroughly tested.

Image Intensifier Tube Information

The AGM UNVG is available with the following Image Intensifier Tube options:

• Elbit Systems USA Gen-3 P43-Green Phosphor, Minimum FOM 1800*
• Elbit Systems USA Gen-3 P45-White Phosphor, Minimum FOM 1800*
• Elbit Systems USA Gen-3 P45-White Phosphor, Minimum FOM 2200


• Elbit Systems USA Gen-3 P45-White Phosphor, Minimum FOM 2600**

All units are built using high-quality, meticulously-selected, brand-new image intensifier tubes.  All image intensifiers used by AGM have the most stringent spot (blemish) tolerances.

Elbit thin-film tubes perform well in most conditions with minimal ambient light.  These tubes are an excellent value, produce a great image.  They work exceptionally well in urban environments with some ambient light.

All AGM UNVG image intensifier tubes are "Auto-Gated" in order to offer protection from light exposure during use.

*1800 FOM variants available with Mil-Spec Optics only.

**2600 FOM variant is available with RPO Optics only.

Warranty Information:

All AGM night vision systems are backed by a three-year, transferable factory warranty, so buy with the confidence that you’ll enjoy the UNVG for many trouble-free years of service.

Primary Feature

• Ultralight & Durable PPEK+ Glass Fiber Construction
• Corrosion and Impact Resistant
• High-Quality Mil-Spec Objective Lens and Eyepiece - 17.6 Oz
• Rochester Precision Ultralight Optics (RPO) 3.0 (Optional) - 16.0 Oz
• Image Intensifier Tube: Elbit Thin-Film White Phosphor, 1800-2600+ FOM
• Green and White Phosphor Image Intensifier Tube Options
• Stringent Spot / Blemish Tolerance for an extremely clean image
• Aluminum Dovetail Mounting Interface
• Friction Lock Interpupillary Adjustment (No Tools Required)
• Single AA Battery Power, Up to 15 Hours Operating Time
• External Battery Pack Included - Up to 60 Hours Operating Time
• Individual Pod Stow Power Shutoff
• User Adjustable Pod Tension
• Manual Gain Control
• Onboard IR-Illuminator & Indicator
• Low Battery Indicator
• Simple, Ergonomic Controls

• Auto-gated Power Supply
• Nitrogen-Purged
• Professionally Assembled

• Exceeds IP-67 Water / Dust Ingress Specifications

• Three-Year, Transferable Overall System Warranty

• Made in USA

Items Included

• AGM Ultralight Night Vision Goggle (UNVG) - Gen 3
• External Battery Pack
• Power Cable
• Soft Carrying Case
• Waterproof Carrying Case
• Image Intensifier Tube Data Sheets
