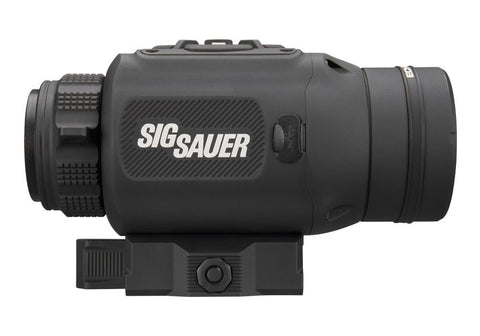

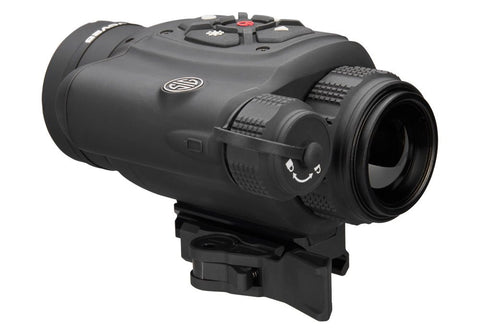

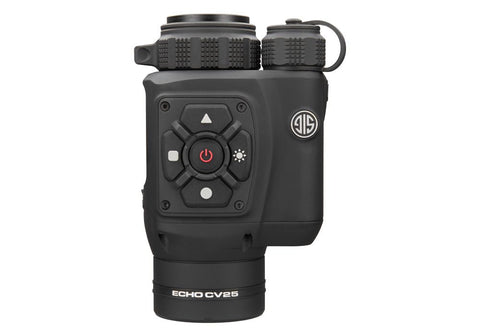

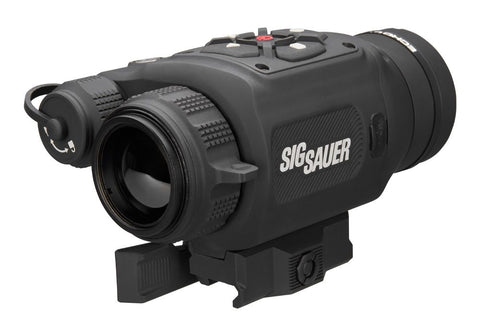

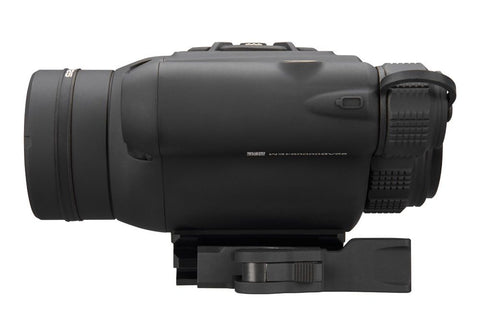

Sig Sauer Echo CV25 Clip-On Thermal

Sig Sauer Echo CV25 Clip-On Thermal

PLEASE INQUIRE FOR CURRENT STOCK STATUS OR LEAD TIME PRIOR TO ORDERING

The Sig Sauer Echo CV25 is an advanced, compact, ultra-rugged clip-on thermal optic which provides an impressive set of features worthy of the Sig Sauer name.  The CV25 features an LWIR 640x512, 12µm ≤20 mK NETD thermal sensor combined with a 25mm Germanium objective lens to provide a base magnification of 1.0x.  A high-resolution 1024 x 768 OLED display combined with this sensor, along with a parallax-free eyepiece provides the user with excellent image quality when combined with your daytime optic.

The CV25 includes a quick-detach picatinny rail mount which places the optic at the industry standard height 1.535” for proper alignment with your daytime optic.  The CV25 is designed to work well with magnified optics in the 2.0-3.0x base magnification range, with 3.0x being ideal to allow full view of the menu functions on screen.  A stand-alone mode also allows this unit to function as a standard weapon sight with a reticle and the ability to zero.  Additionally, the CV25 is only 5” in length which requires minimal rail space on the host weapon when used as a clip-on.

The Echo CV25 is powered by a single non-proprietary 18650 batteries which provide up to 9 hours of continuous operating time.  Additionally, it can be powered via the external USB-C port for even longer operating times.

Other notable features of the Echo CV25 include onboard video recording with audio, photo capture, live video streaming via the BDX App, Wi-Fi / Bluetooth, and an ultra-durable all metal housing with IP67 ingress protection.  The Sig Ballistic App (SIG BDX) provides connectivity between the optic and your mobile device, as well as features Applied Ballistics technology to provide the most accurate ballistics data available.

One of the most important features of the Echo CV25 is it backed by the Sig Sauer Infinite Guarantee, which is a complete, unrestricted lifetime warranty.  It is fully transferable, no receipt or warranty card required, and ensures the owner with be able to enjoy this thermal optic with confidence for many years to come.

Primary Features

  • 640 × 512 Resolution
  • 25mm Germanium Objective Lens
  • 12µm Pixel Pitch
  • ≤20 mK NETD Thermal Sensitivity
  • 50Hz Refresh Rate
  • 1024 x 768 High-Resolution OLED Display
  • 1.0x Base Magnification
  • 1.0-8.0x Magnification Range
  • Ideally Suited for 2.0-3.0x Base Magnification Optics as a Clip-On
  • Stand-Alone Weapon Sight Mode
  • Adjustable Objective Focus
  • 17.0 Degree Field of View at 100 Yards
  • Onboard Video Recording with Sound (32GB Solid State)
  • Onboard Photo Capture
  • Wi-Fi / Bluetooth
  • Sig Sauer BDX Ballistics App Compatibility with Applied Ballistics Technology
  • Multiple Color Pallets
  • Ultra-Rugged All-Metal Housing
  • Ultra-Compact 5” Length for Minimal Picatinny Rail Footprint
  • IP67 Waterproof / Shockproof
  • 9 Hour Rechargeable, Non-Proprietary 18650 Battery Power
  • USB-C External Power Port
  • Quick Detach Picatinny Mount with Industry Standard 1.535” Centerline Optic Height
  • Sig Sauer Infinite Guarantee Lifetime Warranty

Items Included

  • Sig Sauer Echo CV25 Clip-On Thermal Optic
  • Quick Detach 1.535” Centerline Picatinny Mount
  • 1.93” Centerline Riser Kit
  • 18650 Rechargeable Battery (2 Included)
  • Battery Charger
  • Charging Cable
  • Lens Cleaning Pen
  • Quick Reference Guide
  • Lens Cover
  • Carry Case
